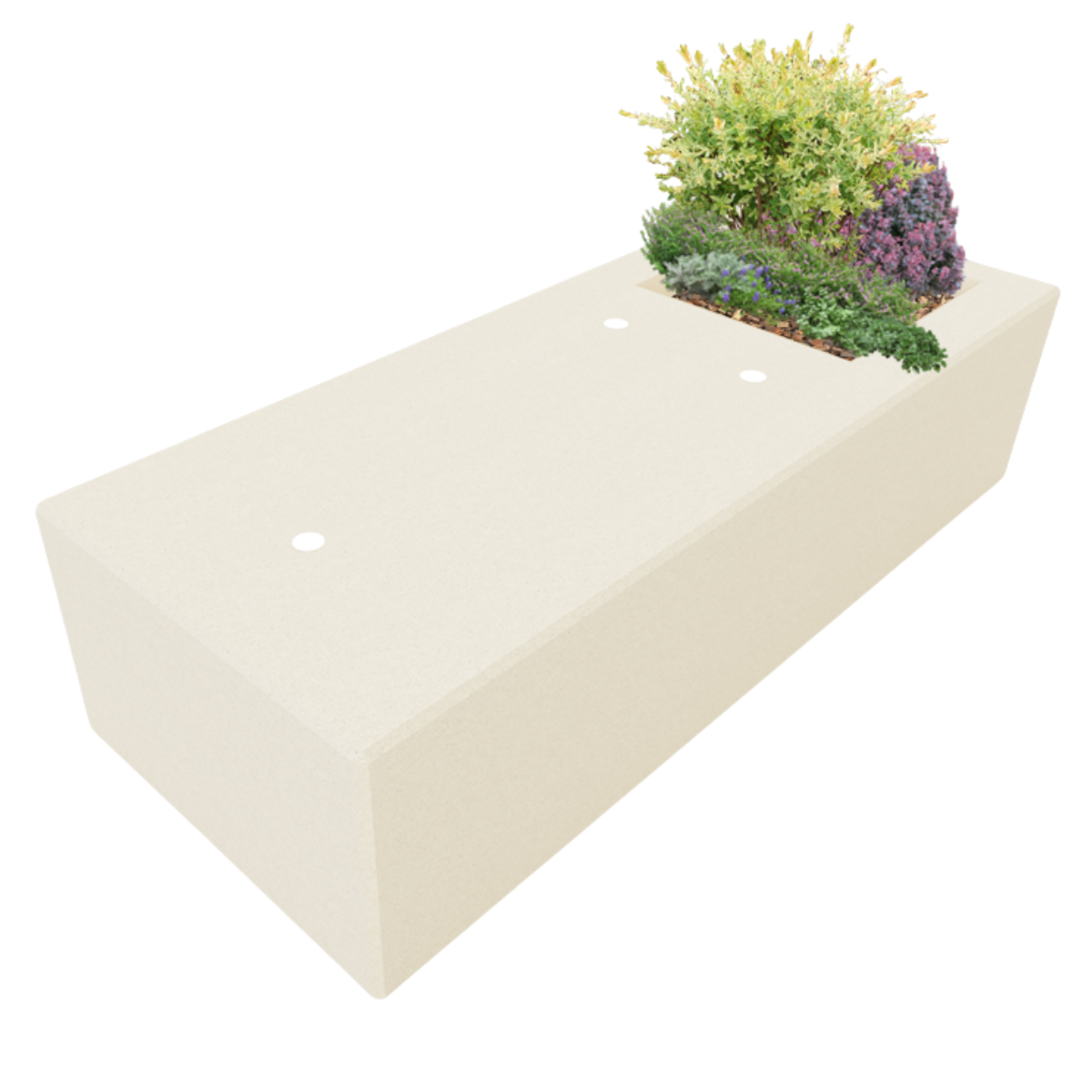

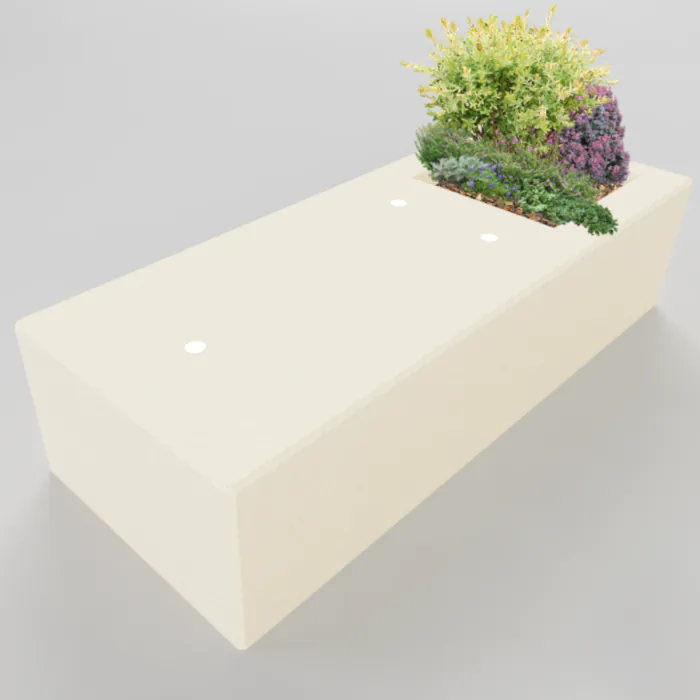

HVM Concrete Vehicle Mitigation Block 250 with Integrated Planter

The HVM Concrete Vehicle Mitigation Block 250 with Integrated Planter is an extended split‑design security barrier engineered to blend seamlessly into modern urban environments. This innovative unit merges PAS 68–certified vehicle impact protection with functional green infrastructure, allowing perimeter security to be incorporated subtly into landscape schemes.

Constructed from artisan precast concrete, this heavy‑duty block provides outstanding durability and long‑term resilience in high‑footfall and high‑risk locations. Its integrated planter section transforms traditional defensive infrastructure into attractive street furniture—supporting vegetation that improves visual appeal while maintaining discreet, high‑security performance.

This Product is a variant of the tested size.

The Townscape 1490 x 990 x 600 Counter Terror Block is PAS 68:2010 tested to the following classifications:

30mph test – single block: V/7500/N2/48/90/6.6/0.0
40mph test – single block: V/7500/N2/64/90/12.3/2.2

And PAS 68:2005 tested to the following classification:

30mph test comprising 3 staggered blocks: V/7500/N2/48/60/2.0/0.0

With a unit weight of 3330kg and dimensions of 2490mm (W) x 990mm (D) x 600mm (H), it delivers reliable vehicle‑impact resistance while preserving pedestrian permeability and enhancing placemaking. Its minimal 100mm installation depth allows straightforward deployment without major ground disruption.

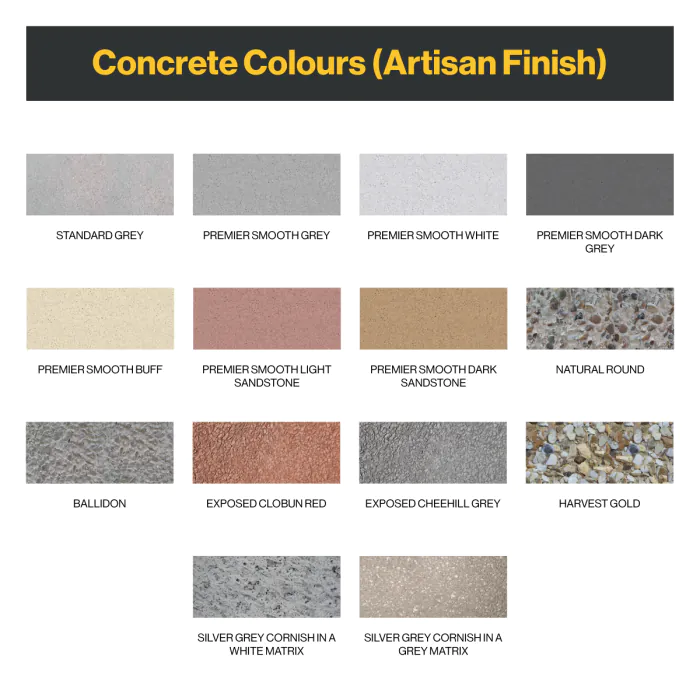

Available in a wide range of finishes; including Grey, Dark Grey, White, Buff, Sandstone variants, Cloburn Red, Cleehill Dark Grey, Silver Aberdeen, and Silver Grey Cornish. The block can be matched to surrounding architecture or public‑realm design. This makes it ideal for transport hubs, retail centres, hospitals, civic spaces, and any environment requiring both safety and aesthetic value.

Please note this product has specific configurations if being used as part of a PAS 68 protection line. Please contact our sales team for more information.
