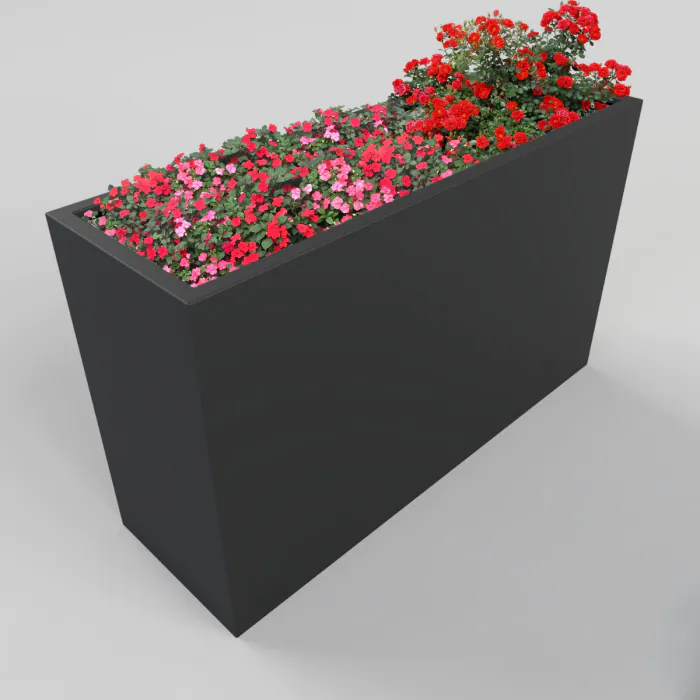

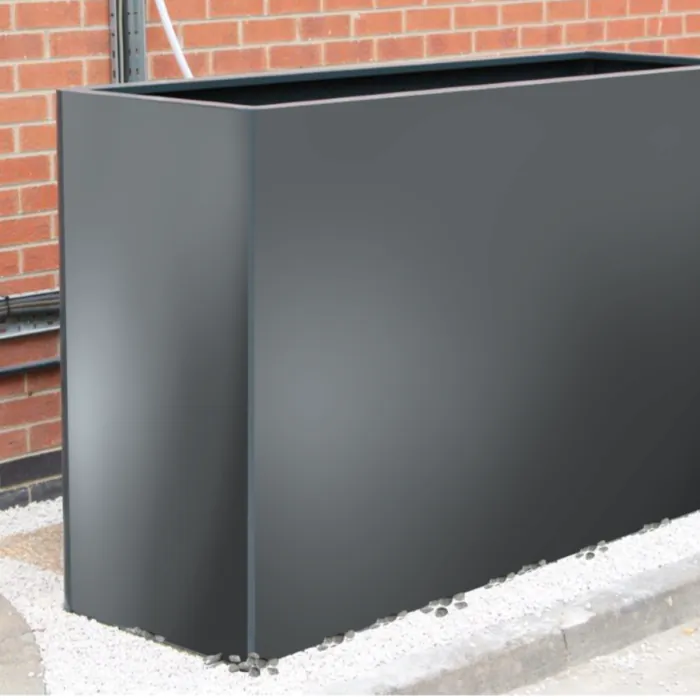

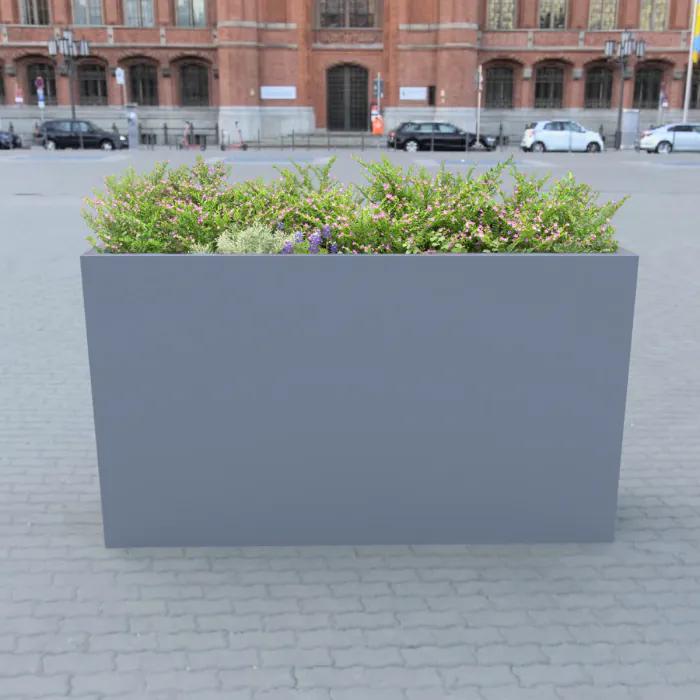

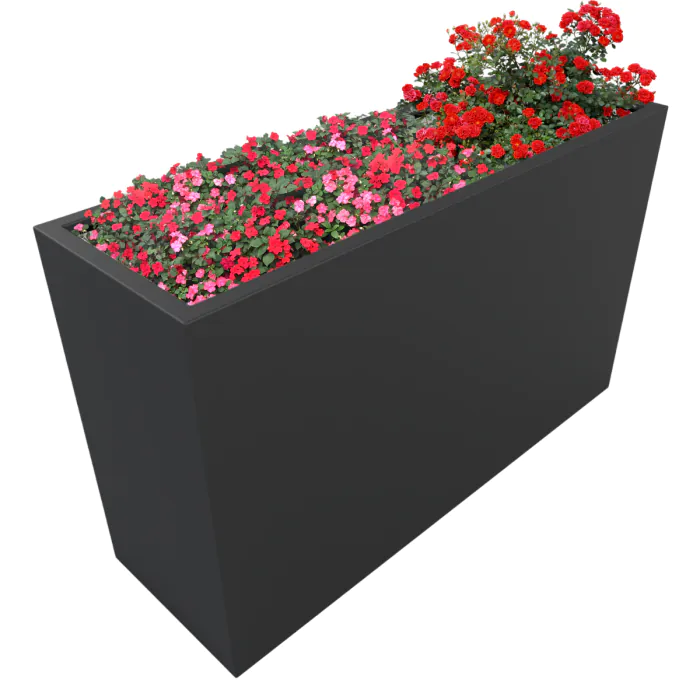

HVM Victoria IWA 14 CT50 Shallow Mount Planter

The HVM Victoria IWA 14 CT50 Shallow Mount Planter is an advanced steel hostile vehicle mitigation (HVM) planter engineered for security‑critical public environments where foundation depths are restricted. Designed with a shallow installation requirement of just 200–300 mm, this planter provides certified vehicle‑impact protection without the need for extensive excavation.

Supplied with two CT50 N2/02 Counter Terror Bollards (Product ID: VED/0015SM), the planter forms an integrated security system capable of delivering high‑speed impact resistance while maintaining an attractive, landscaped aesthetic suitable for modern urban spaces.

Key Features

·         IWA 14‑1 certified CT50 hostile vehicle mitigation planter

·         Shallow‑mount design requiring only 200–300 mm foundation depth

·         Integrated CT50 N2/02 counter‑terror bollards for high‑speed impact resistance

·         Galvanised steel liner with water‑management features

·         Available in a wide range of architectural steel finishes

·         Ideal for public‑realm schemes requiring discreet, landscaped security

·         In line with Townscape’s premium Victoria CT product family

Certified Vehicle‑Impact Performance

This planter incorporates IWA‑certified CT50 bollards, tested to:

• 50 mph (80 km/h) test:
  IWA 14‑1:2013 V/7200/80/90:8.7

This classification confirms the system’s ability to withstand the impact of a 7,200 kg vehicle travelling at 50 mph, making it suitable for high‑risk environments such as civic squares, transport interchanges, retail districts, stadiums, and government sites.

Shallow‑Mount Installation

One of the standout benefits of the Victoria CT50 shallow‑mount model is its minimal foundation depth:

• Installation depth: 200–300 mm

This makes it ideal for locations where deeper foundations are impossible due to:

• Underground services
• Structural slabs
• Historic surfaces
• Reduced excavation allowances
• Fast construction programmes

Despite its shallow installation, the system maintains full IWA performance, enabling high‑security protection in constrained environments.

Premium Steel Construction

The planter is available in a range of durable steel options, allowing specifiers to achieve both security performance and architectural harmony:

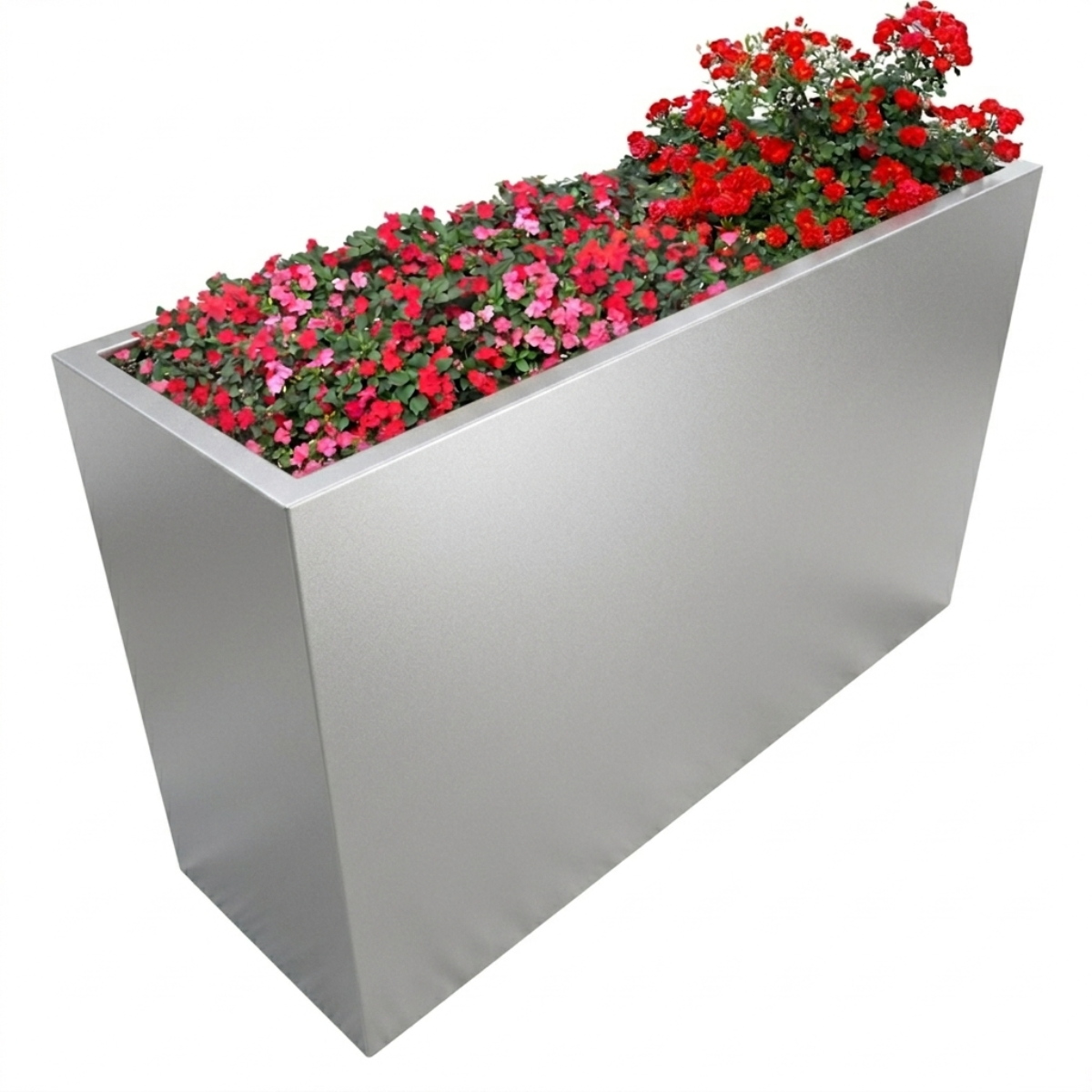

• Powder‑coated mild steel

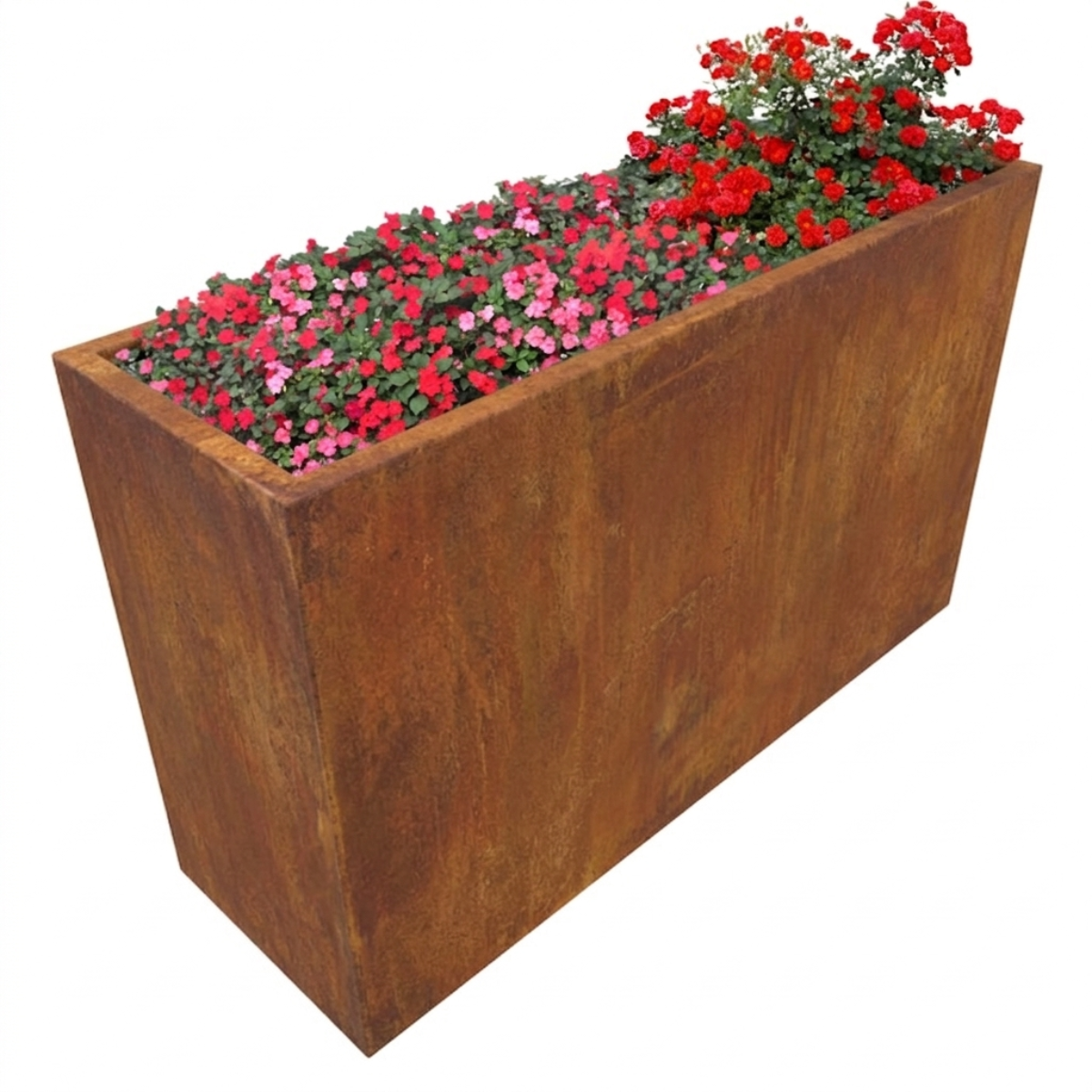

• Corten steel

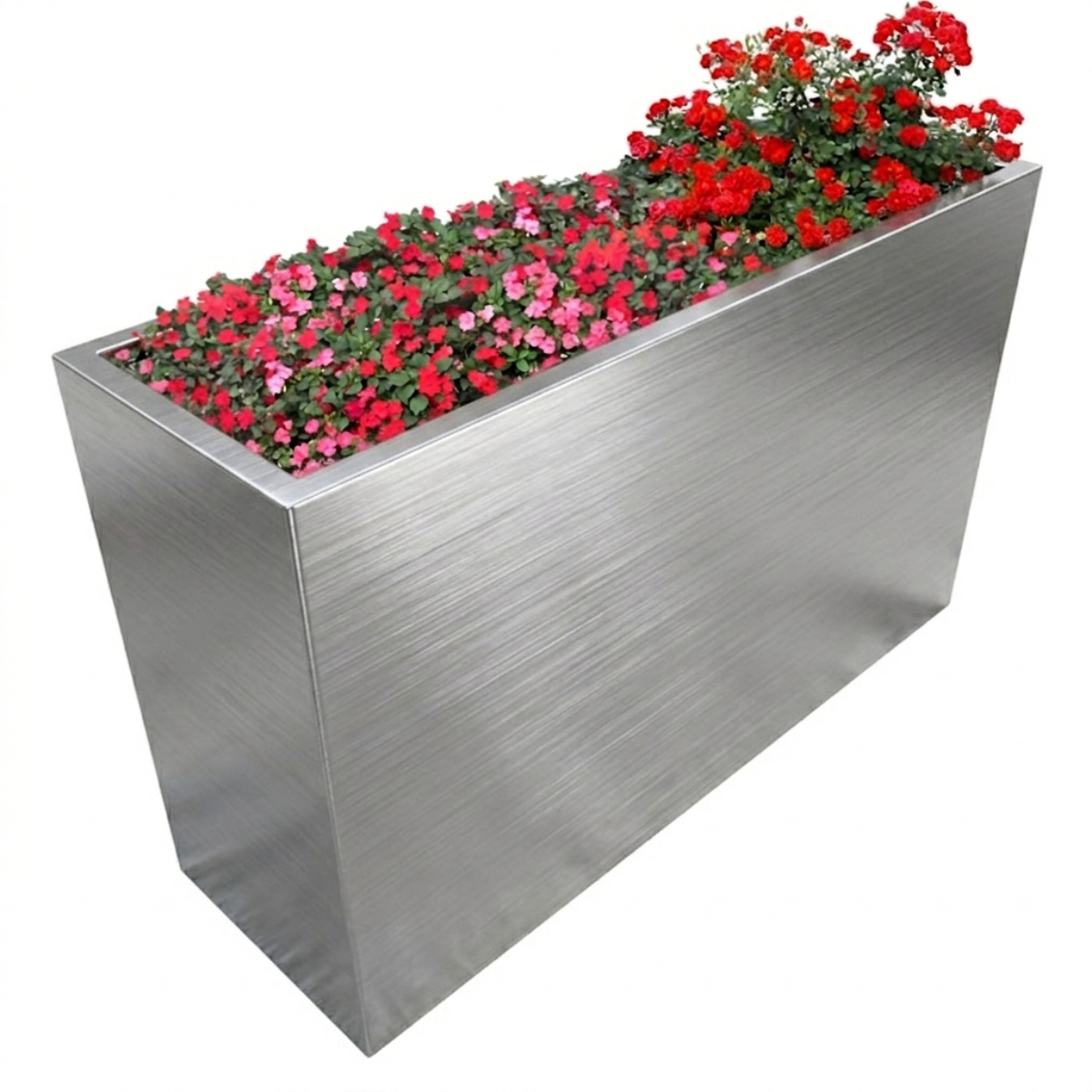

• Brushed stainless steel
• Stainless steel profile
• Aluminium

Each unit is supplied with a galvanised mild steel liner, offering long‑term corrosion protection and supporting healthy planting conditions.

Bespoke sizing and RAL‑matched colours are available for enhanced design flexibility.

Planting System & Functionality

The Victoria CT50 planter includes:

• Galvanised steel liner
• Provision for water reservoir
• Overflow drainage

This ensures that planting thrives even in high‑use public areas, contributing to attractive, welcoming streetscapes while delivering robust perimeter security.

Suitable Applications

This shallow‑mount HVM planter is ideal for projects including:

• Town and city centres
• Transport hubs and forecourts
• Pedestrianised shopping streets
• Stadiums and venues
• Public buildings and cultural institutions
• Mixed‑use developments
• Sites with restricted ground depth

It delivers a balanced approach to security, aesthetics, and practicality—creating safe, attractive public spaces.
