PAS 68 Hazard Profile Concrete Security Block 1500mm Shallow Mount

SKU
BXC VED/0034
From:
£POA

The PAS 68 Hazard Profile Concrete Security Block 150 is a high-performance hostile vehicle mitigation solution designed to protect public spaces, commercial developments and critical infrastructure from vehicle-borne threats.

Customisable Options:

Product Details:

The PAS 68 Hazard Profile Concrete Security Block 150 provides an effective and visually sympathetic hostile vehicle mitigation solution for locations requiring enhanced perimeter security. Designed to help safeguard pedestrians, buildings and public spaces from unauthorised vehicle access, the block combines exceptional strength with an architectural finish suitable for a wide range of environments.

The 1490 x 990 x 600 Counter Terror Block is PAS 68:2010 tested to the following classifications:

  • 30mph test – single block: V/7500/N2/48/90/6.6/0.0
    40mph test – single block: V/7500/N2/64/90/12.3/2.2

And PAS 68:2005 tested to the following classification:

  • 30mph test comprising 3 staggered blocks: V/7500/N2/48/60/2.0/0.0

This product is only available in a smooth black & yellow painted finish.

As part of a wider vehicle mitigation strategy, the PAS 68 Hazard Profile Concrete Security Block 150 offers dependable protection against hostile vehicle threats without the need for extensive groundworks or intrusive security infrastructure. The modular design allows flexible deployment as standalone units or as part of a coordinated perimeter security scheme, enabling designers and security consultants to create effective protection tailored to site-specific requirements.

Dimensions

  • Width: 1490mm
  • Depth: 990mm
  • Height: 600mm
  • Height Above Ground: 500mm

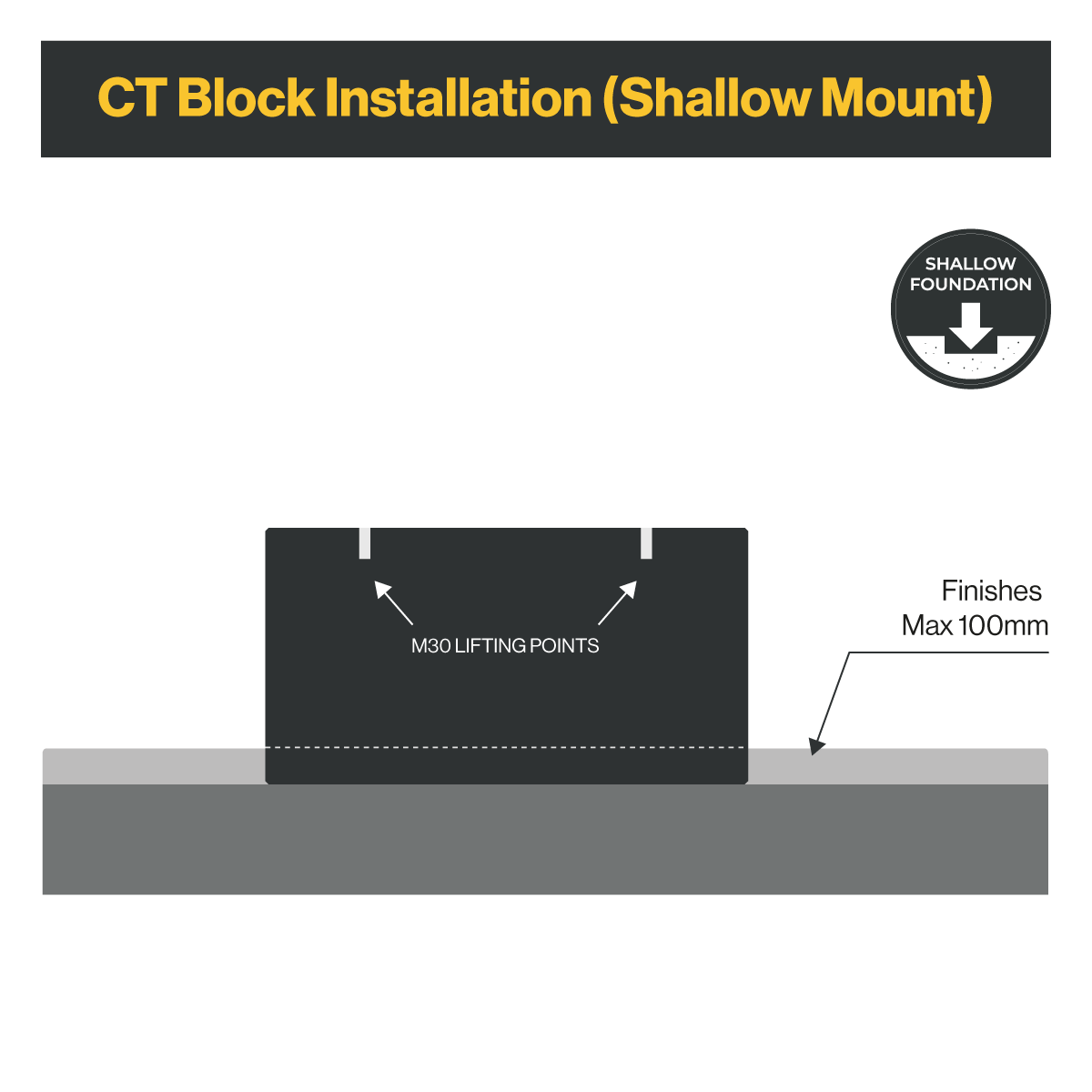

  • Installation: 100mm
  • Unit Weight: 2200kg
  • Material: Artisan Precast Concrete

If dimensions are critical, please contact sales to confirm
